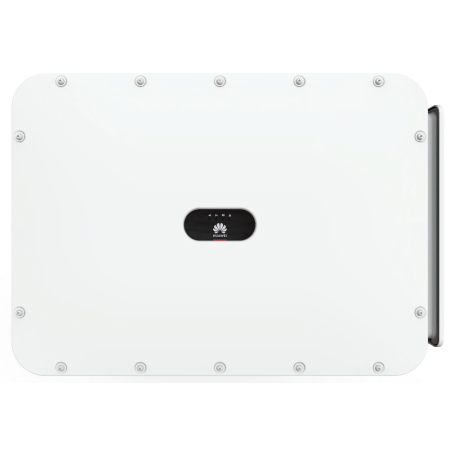

Three-phase inverter Huawei 150kW SUN2000-150K-MG0
The Huawei SUN2000-150K-MG0 PV inverter is a 150 kW three-phase string inverter with 7 MPPTs, up to 98.8% efficiency and IP66 protection. Built for large commercial, industrial and utility-scale plants. Dimensions 1000×710×395 mm, weight 99 kg.
The Huawei SUN2000-150K-MG0 PV inverter is a 150 kW three-phase inverter with 7 MPPTs and up to 98.8% efficiency, designed for large-scale photovoltaic plants: large industrial roofs, ground-mounted systems and utility applications. IP66 protection ensures reliability in harsh environments.
A string inverter for large plants
The MG0 series is Huawei's high-power string range for the C&I and utility segment. The 7 MPPTs handle many strings with different orientations, maximising yield on large surfaces and reducing mismatch losses. String-level monitoring simplifies operation and maintenance (O&M) of extensive plants.
SUN2000-150K-MG0 technical specifications
| Manufacturer | Huawei |
| Model | SUN2000-150K-MG0 |
| Rated power | 150 kW three-phase |
| Number of MPPTs | 7 |
| Max. efficiency | 98.8% |
| Protection rating | IP66 |
| Dimensions | 1000 × 710 × 395 mm |
| Weight | 99 kg |
| Application | Large commercial, industrial and utility plants |
Which plant is it suitable for?
With 150 kW and 7 MPPTs it suits large PV plants of roughly 150 to 225 kWp per unit: extensive industrial buildings, ground-mounted systems and mid-size power plants. Several units in parallel cover larger utility projects.
Frequently asked questions
Is it a hybrid inverter?
No. The MG0 series is a range of grid-tie string inverters for large-scale PV generation, not designed for residential storage. Utility-scale storage uses dedicated solutions.
Why 7 MPPTs?
The 7 MPPTs split the many strings of a large plant into independently managed groups, optimising output even with different orientations and tilts and reducing the mismatch losses typical of large surfaces.
How do you install a 99 kg inverter?
An inverter of this size requires qualified personnel, suitable lifting equipment and an adequate structural mounting. AC/DC connection and commissioning must comply with the standards applicable to power installations.
Can it be installed outdoors?
Yes. IP66 protection allows outdoor installation even in harsh environments, with high resistance to dust and water jets.
