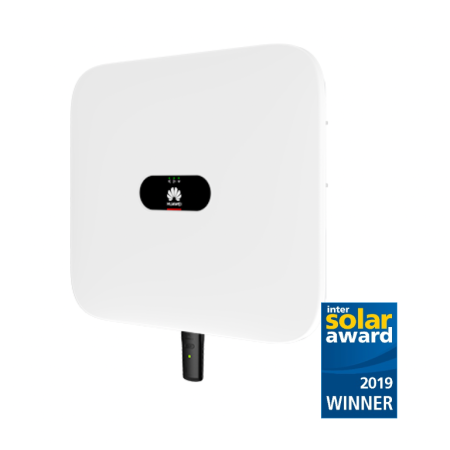

Huawei 8kW Three-Phase Hybrid Inverter
The Huawei SUN2000-8KTL-M1 hybrid inverter is a three-phase 8 kW unit with 2 MPPT, AC/DC Type II surge arresters, DC switch and integrated storage interface. Battery ready for LUNA2000, IP65 rated, monitoring via Smart Dongle. Weight 17 kg.
The Huawei SUN2000-8KTL-M1 hybrid inverter is a three-phase 8 kW inverter with 2 MPPT, designed for residential and small-business photovoltaic systems with a three-phase connection. It integrates AC/DC Type II surge arresters, a DC switch and a storage interface, for a complete and safe system.
Why a three-phase hybrid inverter?
A three-phase connection is suited to users with power above 6 kW or with three-phase loads (heat pumps, chargers, machinery). Being hybrid/battery ready, the inverter is prepared for Huawei LUNA2000 storage: you can start with PV and add the battery later, increasing self-consumption.
SUN2000-8KTL-M1 technical specifications
| Manufacturer | Huawei |
| Model | SUN2000-8KTL-M1 |
| Rated power | 8 kW three-phase |
| Number of MPPT | 2 |
| Type | Hybrid inverter (battery ready) |
| Compatible battery | Huawei LUNA2000 |
| Communication | RS485, WLAN/Ethernet via Smart Dongle, optional 4G |
| Protections | AC/DC Type II surge arresters, DC switch |
| Protection rating | IP65 |
| Weight | 17 kg |
| Monitoring | Huawei FusionSolar app |
Which system is it suitable for?
With 8 kW three-phase it is suited to medium-large residential and small-business systems on a three-phase supply, typically 8 to 10 kWp of panels. Its LUNA2000 storage readiness makes it ideal for those who want to maximise self-consumption and continuity.
Frequently asked questions
Can I add the battery later?
Yes. It is a hybrid inverter with an integrated storage interface, prepared to connect a Huawei LUNA2000 battery even after the initial installation.
How do I monitor the system?
Through the Smart Dongle (WLAN/Ethernet, or optional 4G) and the Huawei FusionSolar app, which shows production, consumption and storage status in real time.
What protections does it integrate?
It integrates AC and DC Type II surge arresters and a DC switch, to protect the system against surges and allow safe isolation during maintenance.
Can I install it outdoors?
Yes. The IP65 rating allows outdoor installation, protected against dust and water jets. A position sheltered from direct sun is still preferable.
