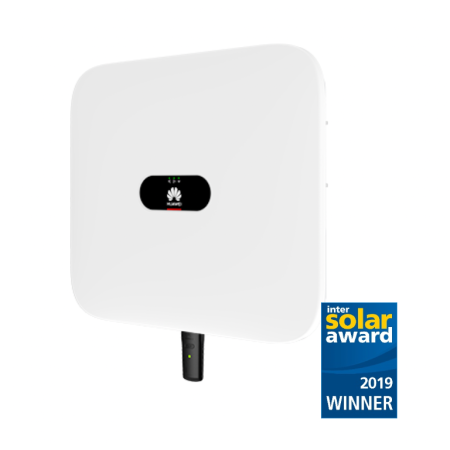

Huawei 6kW Three-Phase Hybrid Inverter
The Huawei SUN2000-6KTL-M1 hybrid inverter is a three-phase 6 kW unit with 2 MPPT, efficiency up to 98.6%, AC/DC Type II surge arresters, DC switch and integrated storage interface. Battery ready for LUNA2000, IP65 rated, monitoring via WLAN/Ethernet/4G Smart Dongle.
The Huawei SUN2000-6KTL-M1 hybrid inverter is a three-phase 6 kW inverter with 2 MPPT and efficiency up to 98.6%, designed for residential and small-business photovoltaic systems with a three-phase connection. It integrates AC and DC Type II surge arresters, a DC switch and a storage interface, for a complete and safe system.
Why a three-phase inverter?
A three-phase connection is suited to homes and businesses with contracted power above 6 kW or with three-phase loads (heat pumps, machinery, EV chargers). It distributes power evenly across the three phases and is often required by the grid operator above certain power thresholds.
SUN2000-6KTL-M1 technical specifications
| Manufacturer | Huawei |
| Model | SUN2000-6KTL-M1 |
| Rated power | 6 kW three-phase |
| Number of MPPT | 2 |
| Maximum efficiency | 98.6% |
| Type | Hybrid inverter (battery ready) |
| Compatible battery | Huawei LUNA2000 |
| Communication | RS485, WLAN/Ethernet via Smart Dongle, optional 4G |
| Protections | AC/DC Type II surge arresters, integrated DC switch |
| Protection rating | IP65 (outdoor installation) |
| Weight | 17 kg |
| Monitoring | Huawei FusionSolar app |
Which system is it suitable for?
It is suited to three-phase residential and small-business systems, typically on a three-phase supply with power from 6 kW upwards. Its LUNA2000 storage readiness makes it ideal for those who want to maximise self-consumption and energy continuity.
Frequently asked questions
What is the difference between the M1 and LB0 versions?
The M1 series is three-phase, suited to three-phase supplies, while the LB0 series is single-phase. The choice depends on your meter and electrical supply. Both are hybrid and compatible with LUNA2000 batteries.
Can I add the battery later?
Yes. It is a hybrid inverter with an integrated storage interface, prepared to connect a Huawei LUNA2000 battery even after the initial installation.
How do I monitor the system?
Through the Smart Dongle (WLAN/Ethernet, or optional 4G) and the Huawei FusionSolar app, which shows production, consumption and storage status in real time.
Can I install it outdoors?
Yes. The IP65 protection rating allows outdoor installation, protected against dust and water jets. A position sheltered from direct sun is still preferable.
