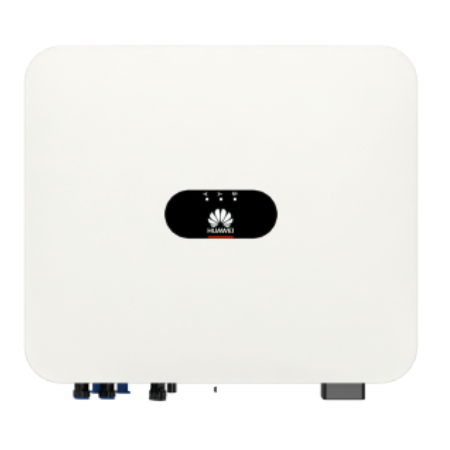

Huawei 3kW Hybrid Inverter SUN2000-3KTL-LB0
The Huawei SUN2000-3KTL-LB0 hybrid inverter is a single-phase 3 kW unit with 2 MPPT, AC connector for fast wiring, IP66 rating and natural cooling. Battery ready for Huawei LUNA2000 storage, with integrated DC/AC surge protection and a 10-year warranty extendable to 20.
The Huawei SUN2000-3KTL-LB0 hybrid inverter is a single-phase 3 kW inverter of the LB0 series, designed for residential photovoltaic systems with or without storage. With 2 MPPT, an AC connector optimised for fast wiring, IP66 protection and natural cooling (no fans), it is built for easy installation and long outdoor life.
What does hybrid and battery ready mean?
A hybrid inverter manages panels and battery together: you can install it right away with PV only and later add Huawei LUNA2000 storage without changing the inverter. The battery stores surplus solar energy and makes it available in the evening, increasing self-consumption and energy continuity.
SUN2000-3KTL-LB0 technical specifications
| Manufacturer | Huawei |
| Model | SUN2000-3KTL-LB0 |
| Rated power | 3 kW single-phase |
| Number of MPPT | 2 |
| Type | Hybrid inverter (battery ready) |
| Compatible battery | Huawei LUNA2000 |
| Protection rating | IP66 (outdoor installation) |
| Cooling | Natural (no fans) |
| Protections | Integrated DC/AC surge, AFCI |
| Dimensions | 376 × 425 × 150 mm |
| Weight | 15 kg |
| Warranty | 10 years, extendable up to 20 |
Which system is it suitable for?
With 3 kW of power it is suited to small residential systems (about 3-4 kWp), typical of a home with modest consumption. Being hybrid, it is the right choice for those who want to start with PV and add storage later.
Frequently asked questions
Can I add the battery later?
Yes. It is a battery ready hybrid inverter: prepared to connect a Huawei LUNA2000 battery even after the initial installation, without replacing the inverter.
Can I install it outdoors?
Yes. The IP66 rating and natural cooling allow outdoor installation, with good resistance to dust and water. A position sheltered from direct sun is still preferable.
What is AFCI protection?
The AFCI (Arc Fault Circuit Interrupter) detects and interrupts electrical arcs on the DC side, one of the main causes of fire in PV systems: an important safety plus, especially on residential roofs.
How long is the warranty?
The warranty is 10 years, extendable up to 20 years, in line with the Huawei standard for residential inverters.
What should be checked on delivery?
Check that the packaging, model and supplied items match the order and show no visible damage. Keep the manual and documents, and do not energise the product if the enclosure or connectors are damaged.
