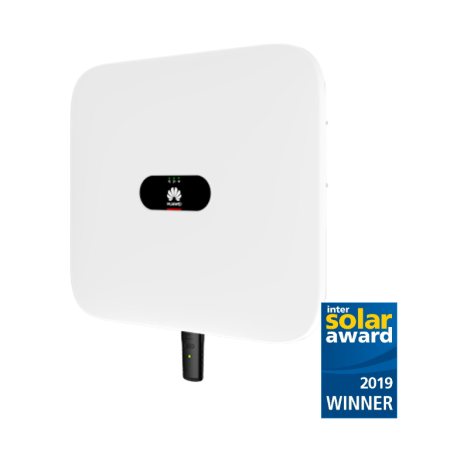

Huawei 10kW SUN2000-10KTL-M1 Hybrid Inverter
The Huawei SUN2000-10KTL-M1 hybrid inverter is a three-phase 10 kW unit with 2 MPPT, AC/DC Type II surge arresters, DC switch and integrated storage interface. Battery ready for LUNA2000, IP65 rated, monitoring via WLAN/Ethernet/4G Smart Dongle. Weight 17 kg.
The Huawei SUN2000-10KTL-M1 hybrid inverter is a three-phase 10 kW inverter with 2 MPPT, designed for residential and small-business photovoltaic systems with a three-phase connection. It integrates AC/DC Type II surge arresters, a DC switch and a storage interface.
Why a three-phase hybrid inverter?
A three-phase connection is suited to users with power above 6 kW or with three-phase loads (heat pumps, chargers, machinery). Being hybrid/battery ready, it is prepared for Huawei LUNA2000 storage: you can start with PV and add the battery later.
SUN2000-10KTL-M1 technical specifications
| Manufacturer | Huawei |
| Model | SUN2000-10KTL-M1 |
| Rated power | 10 kW three-phase |
| Number of MPPT | 2 |
| Type | Hybrid inverter (battery ready) |
| Compatible battery | Huawei LUNA2000 |
| Communication | RS485, WLAN/Ethernet via Smart Dongle, optional 4G |
| Protections | AC/DC Type II surge arresters, DC switch |
| Protection rating | IP65 |
| Weight | 17 kg |
| Monitoring | Huawei FusionSolar app |
Which system is it suitable for?
With 10 kW three-phase it is suited to large residential and small-business systems on a three-phase supply, typically up to 12-13 kWp of panels. Ideal for those who want to maximise self-consumption by adding LUNA2000 storage.
Frequently asked questions
Can I add the battery later?
Yes. It is a hybrid inverter with an integrated storage interface, prepared to connect a Huawei LUNA2000 battery even after the initial installation.
How do I monitor the system?
Through the Smart Dongle (WLAN/Ethernet or optional 4G) and the Huawei FusionSolar app, with real-time production, consumption and storage data.
What protections does it integrate?
It integrates AC and DC Type II surge arresters and a DC switch, to protect the system and allow safe isolation.
Can I install it outdoors?
Yes. The IP65 rating allows outdoor installation. A position sheltered from direct sun is still preferable.
