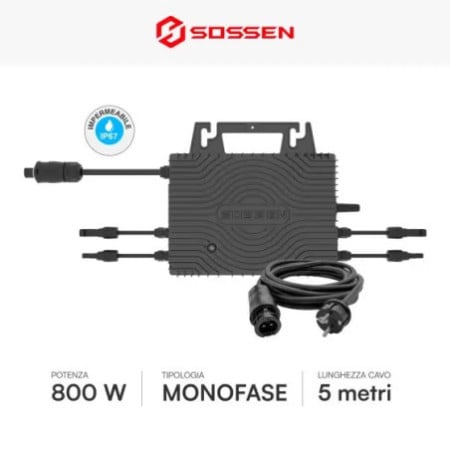

SOSSEN-Micro 800 - 800W grid-tied photovoltaic micro inverter 2xMPPT
SOSSEN Micro-800 is a new-generation single-phase grid microinverter designed to ensure maximum efficiency with a Wi-Fi monitoring system. It is optimized to effectively manage modern high-efficiency photovoltaic modules with an input up to 2x600 Wp and dual MPPT (total 1200Wp). In addition, it supports rapid shutdown, ensuring maximum safety. Ideal for building your balcony or portable photovoltaic system.
12-year warranty.
TECHNICAL FEATURES
• Power: 800W
• Type: Single-phase
• Hybrid: No
• No. of MPPT: 2
• Max. strings per MPPT: 1
• Wi-Fi module included: Yes (integrated)
• Maximum DC input power: 1200Wp (2x600W)
• PV input voltage: 60V
• Start-up voltage: 20V
• MPPT voltage range: 20-60V
• Maximum AC output power: 800W
• Protection rating: IP67
• Dimensions: 260 x 197,5 x 35,6 mm
• Weight: 3,3 Kg
• Certifications: CEI 0-21
• Warranty: 12 years
CABLE TECHNICAL SPECIFICATIONS:
• Type: Power cable
• Max. cable power: 4000W
• Length: 5m
• Rated voltage: 250V
• Plug: Schuko 2P+T 16A
